About
Our licensing system, called “CodeMeter” is provided in collaboration with Wibu-Systems, one of the top suppliers in the industry.
Our clients (hereinafter called “licensee“) must activate license on their machine, as our licensing system permits that one license can cover any of our Core Network Products installed or used on a single machine (virtual or not).
There are two major usage scenarios:
- One license per server
- Each license is bound to only one server/virtual machine
- One server can hold N number of licenses
- All licenses are bound to the License Server.
- Each Yate based application can run in different VM Guests and is granted one license on start, up to the number of bought licenses.
License activation is strongly bounded to the hardware, because on any license request (as action) made by the licensee, a machine fingerprint (containing hardware, environment and OS informations) is generated and stored in the .WibuCmRaC file.
In case of a Virtual Machine the license will be bound to characteristics of both the VM and the host’s hardware.
Moving the VM to another host would invalidate the license so in this case it is undesirable to install the license in the VM, a separate license server should be used.
If the stability of hardware cannot be guaranteed please see the USB Dongle alternative below.
To obtain a license request code, log in to your machine and use yate-mgmt command-line utility as shown in License request
The .WibuCmRaC file (which also contains the license request code) must be sent to us via Support system and in turn, we will send back an update file ( .WibuCmRaU ) to the licensee.
With this file, a license update operation is made only once on the licensee machine.
This procedure sums ‘license update’ and ‘license receipt’ operations and will be made also with yate-mgmt as shown in License activation
Once license is updated and license receipt is generated, please upload license receipt to our Support system.
This procedure will allow future rebuilding of the license on that specific machine if the license is destroyed.
Installing
Requirements
All our Yate based core products are built on top of Mageia 5 so this Linux distribution should be already installed on the machine.
On every machine with private Yate packages installed, we need to add the YateCore repository and install the yate-mgmt-core package as root.
[yate@licensee-machine][~]$ su –
Password:
[root@licensee-machine][~]#
[root@licensee-machine][~]# urpmi.addmedia –update YateCore http://repo.yate.ro/licensed/mga5/x86_64
[root@licensee-machine][~]# urpmi yate-mgmt-core
…
These packages will be installed: yate-mgmt-core-*.mga5.noarch , yate-mgmt-*.mga5.noarch and CodeMeter-*.x86_64
If repository access is restricted to users who authenticate with a username and password, please edit /etc/urpmi/urpmi.cfg file, to contain in the first set of braces curl-options specifying username and password as shown below.
[root@licensee-machine][~]$ head -n 5 /etc/urpmi/urpmi.cfg
{
curl-options: –user username:password
}
Our work as root is temporarily done, to exit root environment, just type ‘exit’
[root@licensee-machine][~]# exit
[yate@licensee-machine][~]$
After the installation we will have yate-mgmt in our /usr/bin directory, typing yate-mgmt (we can check if yate-mgmt-core installed successfully) in your console we will have this output message:
[yate@licensee-machine][~]$ yate-mgmt
Usage: yate-mgmt options…
–cert-view [filename.txt] Display Apache SSL certificate
–cert-update filename.pem Update Apache certificate and restart service
–license-view [filename.txt] View current license information
–license-dump [filename.txt] Dump Wibu licensing info for troubleshooting
–license-verbose [filename.txt] Show details about current licenses
–license-prepare [filename.wbb] Create license container from template
–license-request [filename.WibuCmRaC] Create a license request
–license-update filename.WibuCmRaU Install or update license, use – for stdin
–license-receipt [filename.WibuCmRaC] Create a license activation receipt
–license-deactivate [filename.WibuCmRaC] Create a license deactivation request
[yate@licensee-machine][~]$
Verifying and preparing the environment
The environment must be set up on the client’s machine or on his license server (if there is one -> check License on a License Server section).
Before we install any license we must check if there are current license information on licensee system by typing: “yate-mgmt –license-view” or the short command: yate-mgmt -lv
[yate@licensee-machine][~]$ yate-mgmt -lv
[yate@licensee-machine][~]$
If there is no result it means our licensee system has no license at all and we may continue.
To add a license we must prepare the environment for the license by creating a license container with the command: “yate-mgmt –license-prepare” or we can use the short command yate-mgmt -lp
[yate@licensee-machine][~]$ yate-mgmt -lp
You may skip preparation in this case this step is executed automatically when creating a License Request.
License request
Next in our process is the license request step and by typing “yate-mgmt –license-request” or the short command yate-mgmt -lr
A file ending in .WibuCmRaC is created. The license request generates and stores also the machine fingerprint in the license request file (ending in .WibuCmRaC)
License request will be made on licensee machine. If our Core Network products are not running on the same machine, check License on a License Server section.
[yate@licensee-machine][~]$ yate-mgmt -lr
[yate@licensee-machine][~]$
[yate@licensee-machine][~]$ ls *Wibu*
-rw-r–r– 1 yate yate 33358 Sep 2 15:57 32767-16385_5000676.WibuCmRaC
[yate@licensee-machine][~]$
The generated file (in our case 32767-16385_5000676.WibuCmRaC) must be sent to us via our Support system.
We will send a .WibuCmRaU file used for license update which will generate a license receipt. Generated license receipt file must be sent to us in order to activate the license.
License activation
The license update procedure sums ‘license update’ and ‘license receipt’ operations and are will be made with yate-mgmt as shown below:
[yate@licensee-machine][~]$ yate-mgmt -lu 15767-16385_5000676.WibuCmRaU
[yate@licensee-machine][~]$
[yate@licensee-machine][~]$ yate-mgmt -lR
[yate@licensee-machine][~]$
After that a new file ending in .WibuCmRaC is generated (128-26881_5000676-receipt.WibuCmRaC), please upload the file to our Support system.
The license request operation also changes the license container on the licensee machine from 32767-16385_5000676 to 128-26881_5000676.
This change can be verified with yate-mgmt –license-view command.
[yate@licensee-machine][~]$ yate-mgmt –license-view
SER=128-26881 FC=5000676 PC=100 QTY=1 FEAT=0x8000000f NAME=Yate based core network products
[yate@licensee-machine][~]$
Finalizing installation
Once the license is set up it is time to install the product themselves on their machines. This job needs root access.
Here is an example for installing YateHSS:
[yate@licensee-machine][~]$ su –
Password:
[root@licensee-machine][~]#
[root@licensee-machine][~]# urpmi yate-hss
…
[root@licensee-machine][~]# systemctl status yate-hss.service
● yate-hss.service – YATE based Home Subscribers Server
Loaded: loaded (/usr/lib/systemd/system/yate-hss.service; enabled)
Active: active (running) since Tue 2017-06-06 17:45:33 CEST; 14s ago
…
Products and Licenses on the same server
Below, there are four scenarios:
PLEASE BE AWARE THAT EQUIPMENTS/SERVERS COLORED IN RED SHOULDN’T BE CHANGED AT ALL!
ANY CHANGE WILL INVALIDATE THE LICENSE! MORE DETAILS ABOUT LICENSE BONDING CAN BE FOUND AT THE TOP OF THIS DOCUMENT.
Products and Licenses on different servers
Licenses are installed on a License Server (we recommend a physical machine), because any hardware changes will invalidate the licenses.
Yate products (Core network products) are running on different machines than the License Server.
In the pictures below are two scenarios:
PLEASE BE AWARE THAT EQUIPMENTS/SERVERS COLORED IN RED SHOULDN’T BE CHANGED AT ALL!
ANY CHANGE WILL INVALIDATE THE LICENSE! MORE DETAILS ABOUT LICENSE BONDING CAN BE FOUND AT THE TOP OF THIS DOCUMENT.
In this two cases Yate Core products are running on VMs in two different servers and the License Server is running on another server.
Each VM must have yate-mgmt-core package installed as described in Requirements chapter.
License prepare and license request operations will be made on the License Server, because there will be stored/installed license files.
Below are detailed changes that should be made on License Server settings from CodeMeter WebAdmin:
Easy access & Forwarding
CodeMeter License Server by default works on port 22350 and it accepts connexions only from 127.0.0.1, to access it a local port forwarding is needed.
We will connect trough ssh and forward remote 22350 port to local 8035 port like this:
[user@localhost][~]$ ssh -L 8035:localhost:22350 yate@license-server
Password:
Last login: Tue Sep 6 14:24:33 2016 from about.lan
[yate@license-server][~]$
Operations on License Server
[root@license-server][~]# systemctl restart codemeter.service
Operations on products machine

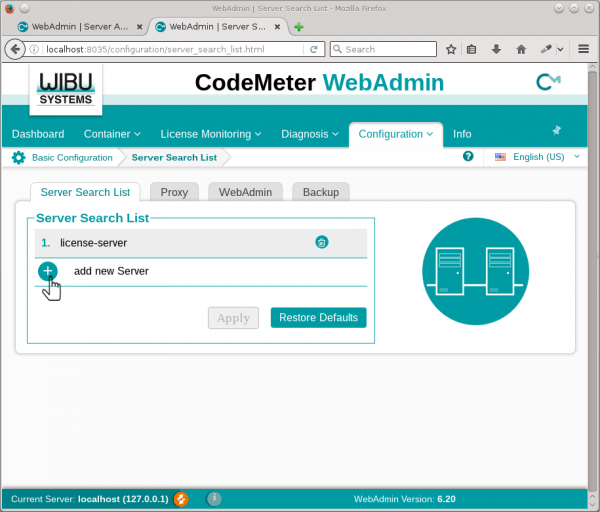

Add License Server IP address in Server Search List from CodeMeter WebAdmin for each machine were Yate is installed.
[user@localhost][~]$ ssh -L 8034:localhost:22350 yate@licensee-machine
- Configuration -> Basic -> Server Search List : Add server IP address -> Apply
[root@licensee-machine][~]# systemctl restart codemeter.service
License on USB Dongle
For special cases we may provide licenses on an USB dongle. In this case the license is not tied to the machine hardware but to the dongle.
On the machine where the Application or the License Server is to be run only the CodeMeter package needs to be installed.
Licensed products pull the package automatically but on a license server it needs to be installed manually from the YateCore repository.
Since the license comes preinstalled on the dongle most of the procedures above are not required. Just plug in the USB dongle and wait a few seconds.
If the license server or product runs in a Virtual Machine the USB device needs to be forwarded from the host to the guest.
Please see case 4. from Product and licenses on the same server
If the USB dongle is used as a License Server then the product machine still needs to be set up to connect to server.
