Testing OTA commands in OTA SMSC mode

Initial set-up for OTA SMSC Mode

Yate OTA Server has three available Delivery Mode Configurations, OTA Scheduler, OTA SMSC and Local. In this guide we’re are giving two examples of using the OTA SMSC mode.

OTA SMSC mode sends the RAM/RFM commands directly to SMSC, passing over OTA Scheduler.

Note:
– All the commands are packed in UD(s) and sent to the connected SMSC.

– SMSC will pack the received UD into a SMS and forward it to the desired MSISDN.

Before starting tests the SIM should be into a phone and connected to the network.
Next step is to open YateOTA interface, press on ‘Change mode' from the interface header. Then choose “OTA SMSC” and press on ‘Set Delivery Mode’.

Testing RAM commands

After setting up the phone with a SIM connected to the network , and changing the Delivery Mode Configuration to OTA SMSC, we can test RAM commands.

For example, we’re going to List all Packages that are present on the SIM.

The following steps must be done:

From the 3 main tabs, select 'Manage Applets' tab.
From the 'Operation' drop-down choose the operation 'List Packages'

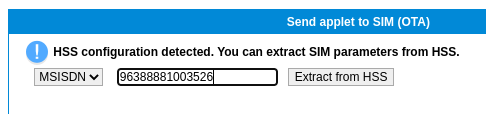

If a keystore is configured, you can automatically fill all the parameters by filling the IMSI/MSISDN and pressing 'Extract from HSS'
OR
Fill the IMSI/MSISDN and complete manually all the SIM Parameters and SIM Profile Parameters

Press on 'Submit' button in the left-bottom corner
In 'OTA Response' window a list of packages should appear

Testing RFM commands

After setting up the phone with a SIM connected to the network , and changing the Delivery Mode Configuration to OTA SMSC, we can test RFM commands.

For example, we’re going to Read/Update files that are present on the SIM.

The following steps must be done:

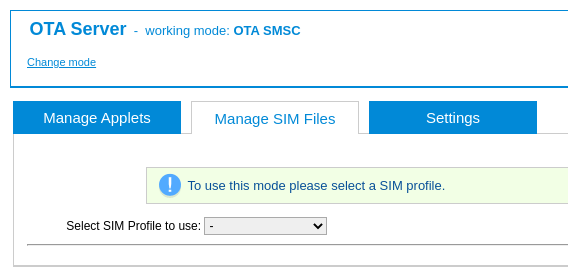

From the 3 main tabs, select 'Manage SIM Files' tab.

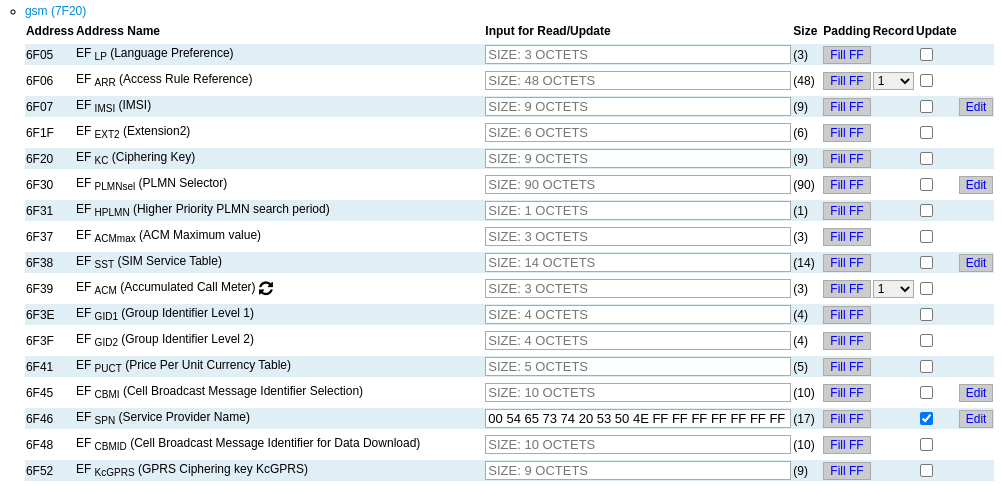

Open 'gsm" and search for EF SPN (6F46)

Fill the 'Input for Read/Update' with the following data

Check the 'Update' boc on the same row

Scroll bottom to the end of the GSM files and press on 'Update Selected Files'

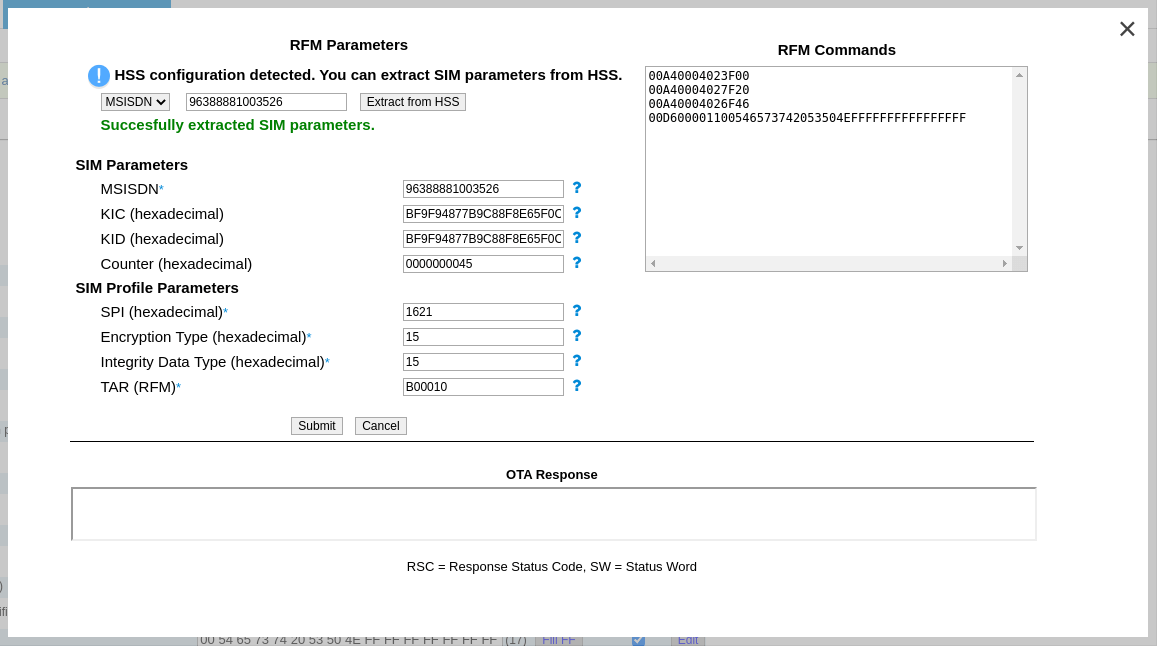

A popup should appear and RFM commands should be filled

If a keystore is configured, you can automatically fill all the parameters by filling the IMSI/MSISDN and pressing 'Extract from HSS'
OR
Fill the IMSI/MSISDN and complete manually all the SIM Parameters and SIM Profile Parameters


					00546573742053504EFFFFFFFFFFFFFFFF

Press Submit
In 'OTA Response' window you should see at the end 'Command successfully executed'
